Your position: products > film blower and bag maker > FQCT-600 bag maker |
||||
|
Plastic
film blower & bag maker
|
|
|||
|

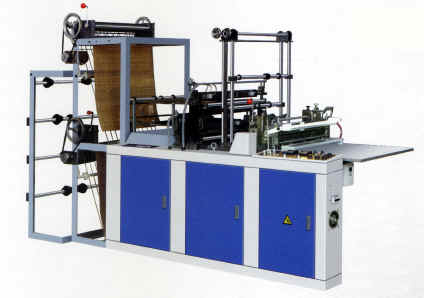

FQCT-600 (700) Computer
High-Speed (Double-Layer) |
||||
|
|
||||
| Model | FQCT-600 | FQCT-700 | ||
| Sealing and cutting width (mm) | 10-550 | 10-650 | ||
| Sealing and cutting length (mm) | 100-1200 | 100-1500 | ||
| Sealing and cutting thickness (mm) | 0.01-.010 | 0.01-0.10 | ||
| bag-making speed (pcs/min) | printed bag 30-100 | printed bag 30-100 | ||
| plain bag 60-320 | plain bag 60-320 | |||
| Error in length (mm) | +/- 1 | +/- 1 | ||
| Motor power (KW) | 1.1 | 1.5 | ||
| Machine weight (kg) | 600 | 700 | ||
| Overall Dimension (mm) | 2800x1180x1600 | 2900x1280x1650 | ||
|
Feature This machine is suitable for sealing and cutting the plastic film as high density polyethylene (HDPE), low density polyethylene (LDPE). It can be used for automatically sealing and cutting various plastic film with colors printing or without colors printing to be bags continuously. It is best equipment for making plastic vest bags and flat bags. This machine is controlled by microcomputer system, stepless regulated by step motor, featured by high-position stop, stable feeding and accurate positioning etc. The finished bags arc neat, stiff and smooth, with beautiful appearance. |
||||
