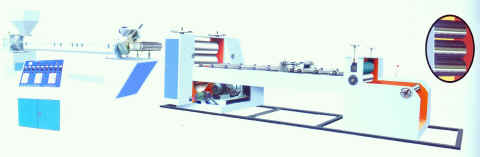

plastic sheet extruder

JDSP Plastic sheet extruder is designed and manufactured by absorbing domestic and international advance technology. It is applicable in producing various kind of plastic sheets of PP, PE and PS whcih are used for making drinking cups, ice-cream, jelly cups and other packaging vessel as well.
This machine is characterized by following features: this machine set is the combination of such main parts as extruder calender, winder, and electric control console. The screw and the cylinder are made of high quality alloy steel (38CrMoAlA) with optimum hardness, strong corrosion resistance and long service lifetime after nitrogen treatment. The flow channel in die head is of coat-hanger design and it ensures the even thickness and the smooth surface of the sheets. The circular water inside the calender brings perfect cooling effect, mesh changer and the cylinder are separately controlled.
JDSP-105 Plastic Sheet Extruder
sheet width: 650mm
sheet thickness: 0.3-1.5mm  1.0-5.0mm
screw diameter: 105mm
main motor power: 37KW
power: 85KW
weight: 6.0T

Plastic cup making machine

Model JD-660 automatic plastic thermoforming machine is a kind of efficient automatic plastic thermoforming equipment developed and manufactured according to plastic thermoforming technical process. It can finish producing product at one time through sheet feeding, heating, stretching, forming and side-cutting, etc. It can produce such as PP, PE, PS and ABS etc. This equipment adopt microcomputer control with semi-automatic and fully-automatic functions. This machine has such advantages as wide use, stable running and smooth operation, high rate of finished products and law noise.
The machine is mainly used for producing disposable plastic vessels, such as tea cup, milk cup, jelly cup, instant noodle bowl and other plastic products.
JD-660B automatic plastic thermoforming machine (plastic cup making machine)
sheet width: 300-660mm
sheet thickness: 0.3-1.5mm
Max. forming area: 620x220mm
Max. forming depth: 120mm
max. diameter of sheet roll: 700mm
Main motor power: 7.5 kw
winder motor: 0.55kw
heating power: 64kw
sheet feeding motor: 2.2kw
working gas pressure: 0.7MPa
revolution of main motor: 20-40 mould/min
dimension: 3500x1500x2700mm
weight: 4.2 T
