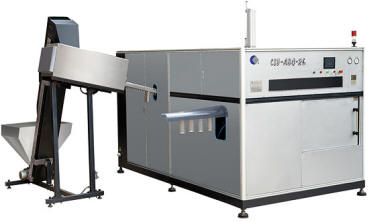

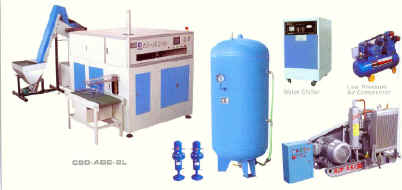

PET Two-stage Automatic Blow Molding Machine |
|||||||
|
CE CERTIFICATE
|
|||||||
|
Item |
unit | Tech. Data | |||||
| CSD-AB2-2L | CSD-AB4-2L | CSD-AB2-5L | |||||
| Max. volume of products |
L |
2 cavity | 4 cavity | 2 cavity | |||
| < 2 L | < 2 L | < 6 L | |||||
| Production capacity | pcs/h | 2700-2900 | 4700-5000 | 1000-1200 | |||
| neck size of products | mm | Ø15-40 | Ø15-45 | Ø40-60 | |||
| useful area of mould plate | mm | 450x380 | 380x500 | 380x500 | |||
| Max. mould thickness | mm | 250 | 250 | 300 | |||
| Min. mould thickness | mm | 197 | 197 | 210 | |||
| mould stroke | mm | 157 | 220 | 220 | |||
| clamping force | KN | 120 | 120 | 120 | |||
| stretch stroke | mm | 370 | 370 | 370 | |||
| working pressure | MPa | 1.0-1.25 | 1.0-1.25 | 1.0-1.25 | |||
| Blowing air pressure | MPa | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | |||
| Power of main blower | KW | 5 | 6 | 5 | |||
| weight of main blower | kgs | 4000 | 5000 | 4000 | |||
| Measurement of main blower | cm | 340x185x200 | 440x200x200 | 340x185x200 | |||
| actual Power of preheater | KW | 43 | 70 | 53 | |||
| Measurement of conveyer | cm | 230x177x235 | 230x177x235 | 180x120x200 | |||
| Weight of conveyer | kgs | 200 | 200 | 200 | |||
| High pressure compressor | Power | KW | 22 | 37 | 37 | ||
| pressure | kgs | 30 | 30 | 30 | |||
| discharge Capa | m3/min | 1.5 | 3.0 | 3.0 | |||
| Low pressure compressor | Power | KW | 22 | 22 | 22 | ||
| pressure | kgs | 12.5 | 12.5 | 12.5 | |||
| discharge Capa | m3/min | 3.0 | 3.0 | 3.0 | |||
| Air tank | capacity | m3 | 0.6 | 0.6 | 0.6 | ||
| work pressure | MPa | 3.0 | 3.0 | 3.0 | |||
| water chiller | cool capacity | Kcal/Hr | 12040 | 12040 | 12040 | ||
| compressor | KW | 4.4 | 4.4 | 4.4 | |||
| front & Rear Air Filter | capacity | m3/h | 2.0 | 2.0 | 2.0 | ||
| Measurement | cm | 50x30x70 | 50x30x70 | 50x30x70 | |||
| Weight | kgs | 30 | 30 | 30 | |||
|
Feature: Adopting imported servo motor the smooth rotate speed and exact orientation. PLC color display controlling panel, memory many kinds of bottle-shape making technical data, makes operation simply. Adopting temperature control of layered infrared heating, the preform heated evenly, makes blow molding easier. Advance double-toggle clamping structure makes clamping force stronger, guarantee bottle ar high quality. Mould adjusting controlled by electric motor with automatic lubrication system. Main parts adopt famous brand which imported from Germany and Japan Air blowing valve: PARKER (Switzerland) Air valve for mold clamping: FESTO (Germany) Air cylinder: FESTO (Germaby) Low pressure air pipe: TPUCO (Taiwan) Pneumatic claw: SMC (Japan) High pressure decompressing valve: FESTO (Germany) PLC color display: OMRON (Japan) Controller of preform transfer: SERVO MOTOR MITSUBISHI (Japan) Voltage regulator for preform heating: AUFONICS (south korea) Mould adjustment motor and rotation motor: YK (YONGKUN) (Taiwan) Approaching switch: OMRON (Japan) control the orientation of chain Photoelectric switch: OMRON (Japan) controlled the transfer of preform from preform loader Magnetic control switch: FESTO (Germany) Automatic lubrication pump: CHEN Ying (Taiwan) Oil Lubricator: FESTO (Germany) All the air pipe connector: SANG-A (Korea) heating lamping: Low power consumption |
|||||||
