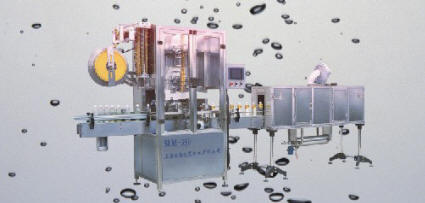

Label Shrinksleeve Automatic Machine (for bottle)
with shrink tunnel

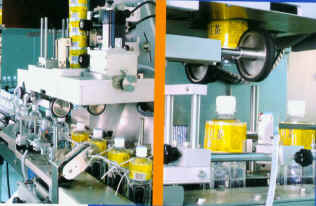

 Automatic label shrinker is a newly designed set. It insets the label onto the bottle surface and shrinks the label properly. It's easy to operate for adopting man-machine interface.

The machine adopts human/machine interface controller for user-friendly operations.
can be used with produceion line.
specially designed knife plate is changefree with the rated specifications
convenient change of specifications without the use of tools.
Forced insertion design proves reasonable and convenient.
integrated adjustments more convenient.
accommodates film paper core size of 5"-10".
suitable for sqaure and round bottles.
adopts a high sensitivity optical fiber sensor ensuring accurate length of cut.


Model  B-6000 B-12000 B-18000
Dimensions (cm) 200x100x230 240x100x230 260x100x230
Weight (kg) 600 600 600
Electric Power AC 3phase  220V/380V
Speed (b/h) 6000 12000 18000
bottle Diameter Ø50-110mm Ø50-110mm Ø50-110mm
label thickness 0.035-0.1mm 0.035-0.1mm 0.035-0.1mm
label insertion length Max. 175mm Max. 175mm Max. 175mm
label material PVC/PET PVC/PET PVC/PET
Main motor (KW) 2 4 7.5
