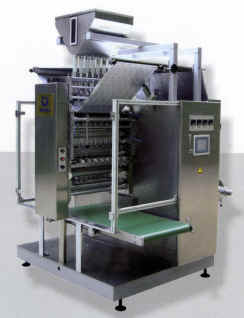

DXDK900 Auto-feeding Packing Machine
(Multi-bag with Four-side Sealing Packing Machine)



กก DXDK900 DXDK900A
bag width (mm) 50-420 50-420
bag length (mm) 60-180 60-180
feed in each bag  2-20g (5-40ml) 2-20g (5-40ml)
Max packing rate (bag/min) 320 400
Max vertical lines 10 10
Max. material width (mm) 900 900
Max. material dia (mm) 300 300
Material core dia (mm) Ø70-Ø76 Ø70-Ø76
Total power (KW) 6 6
Power source  380V 50Hz or 220V 60Hz
Weight (kg) 1200 1200
Dimension (LxWxH) (mm) 1500x1540x2200 1500x1540x2200

Using width packing material for higher  efficiency
Twin-supporting executive mechanism with adequate strength to ensure consistency of the multi-layer bag sealing density. It is convenient for adjustment and maintenance.

The vertical separation bags can be decided by the interface at will.
The newest type feeding mechanism featured in short moving distance, fast feeding speed and high packing efficiency.

Adopt interface dialogue mode for operation control, which is easy to accomplish the function settings of various section so as the operation can be intelligentized.
The length of packed bags can be step-less adjusted manually without replacing the mould. When 3 seals on the horizontal seal-roll, the step-less adjustment is between 65-115mm. When 2 seals on the horizontal seal-roll, the step-less adjustment is 85-150mm

The photoelectric detection points can aim the print pattern automatically.
Single measurement adjustment (micro-adjustment)

Measurement the overall adjustment.

Feature:
   In according with GMP standard.
   The machine is of complete enclosure of frame type. All the touching parts with pharmaceuticals adopts stainless steel materials. Feeding pan and rolling brush in feeding mechanism are easy for replacement and cleaning.
   Applicable in pharmaceutical, foodstuff and cosmetic industries. Suitable for packing of tablets, capsules and grain status etc. Automatically controlled by computer with step-less speed control. The length of bags can be step-less adjusted without mould replacement. Friendly interface for adjustment on mechanisms of sealing, printing, tear-off lining, cutting and feeding etc.
   Requirement 1.7 square space, 400 bags/min Max. output new structure, which meet different demands of clients.
