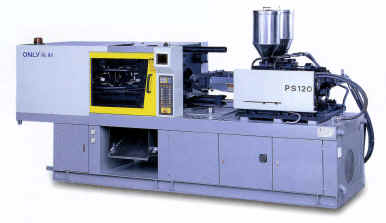

Fully Hydraulic PS series two-color PSM series Binary-component Injection Molding Machine

Model injection unit PS120(PSM120) PS150(PSM150) PS180(PSM180) PS250(PSM250) PS330(PSM330)
Injection unit กก main color  /  assistant color
screw diameter mm 38 30 42.5 33 45 33 55 40 60 40
screw L/D ratio L/D 19 21 19 21 19 21 19 22 20 22
shot volume cm3 158 78 226 128 318 115 570 176 735 200
shot weight g 142 70 205 115 286 105 513 158 661 180
oz 5 2.47 7.27 4 10 3.7 18 5.6 23.3 6.4
injection rate g/s 70 65 100 80 115 80 165 90 220 100
injection pressure MPa 180 210 180 212 175 205 175 210 200 225
plasticizing capacity kg/h 38 26 43 35 55 35 95 47 108 47
screw speed rpm 150 200 150 200 150 200 150 150 150 150
clamping system hydraulic
clamping force KN 1200 1500 1800 2500 3300
distance between tie mm 410x360 410x410 460x460 560x510 710x560
clamping stroke mm 540 620 700 830 920
Max. daylight mm 700 800 900 1050(1130) 1200(1320)
closed daylight (min) mm 160 180 200 220(300) 280(400)
ejector stroke mm 100 150 150 150 150
ejection force KN 4.5 4.5 7.3 7.3 7.3
oil tank capacity L 210(300) 210(360) 300(400) 400(500) 500(600)
pump motor KW 18.5(22) 18.5(22) 22(30) 30(37) 30(37)
heating capacity KW 6.5+5.5 7.45+6.5 8.5+6.5 14+7 16+7
machine weight kg 4800(6000) 5500(6700) 6400(7600) 8000(9300) กก
Clamping unit
   Four hydraulic cylinder direct clamping ensure the mould being pressed evenly.
   Two hydraulic cylinders with booster designing control mould opening & closing, eliminating lubrication & mould adjustment.
   Multiplied pressure hydraulic cylinder is adopted to ensure the clamping pressure much higher than injection pressure.
   Special dig mould height suits for long core mould
   Clamping stroke is accurately monitored by linear transducer.
   High pressure oil seals imported.
   Standard, precise hydraulic cylinder.
   Electrical, mechanical double safety interlock device.
   Ejector & mould clamping stroke elongation.

Injection unit
   Nitrided screw and barrel resist wear.
   Four stage injection speed and seven-stage injection pressure control and three-stage holding pressure.
   The temperature controlled with PID.
   injection stroke is accurately monitored by linear transducer.
   Screw premature start-up prevention device.
   Adjustable back pressure control.
   Melt decompression device.

Control unit
   Famous electrical, hydraulic oil seals and pipes in ported.
   Proportional pressure and proportional speed valve controlled.
   Famous, computer control imported.
   Error self-diagnosis function.
   Interactive adjustment of pressure, speed, time, stroke & temperature.
   LCD display.
   Pressure shot counter, automatic stop or alarm.
