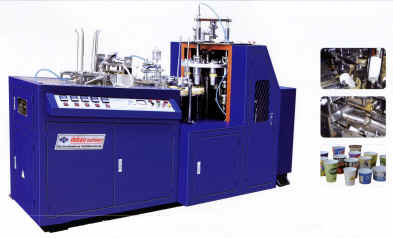

DTMBJ-L12 Vertical Single Coating Film Paper-cup Machine

Production capacity 44-55 pcs/min
Paper material 150-280g (special paper for single film coating paper cup)
Specification of paper cup 3-12 ounce (changeable mould)
Power 380V or 220V 3.8 KW variable frequency control
Weight 1500 kg
Dimension (LxWxH) 2600x1050x1550 mm
Feature
   DTMBJ-L12 M vertical single coating film paper-cup machine and STMBJ-12 M vertical double coating film paper-cup machine are multi-station automatic machines, They have continuous procedures like automatic feeding, sealing, oil-filling, washing, heating, knurling, convex knurling, curling, unloading, etc. They are ideal equipments for producing paper testing-drinking cup, market cup, advertising cup, ice-cream cup, etc. It is small and high speed , power consumption little , fault rate low grade characteristic etc,. In addition, it adopts unique oval cup mould head design , makes cup has perfect features. STMBJ-L12 type vertical double coating film machine was built on DTMBJ-L12 type, adds ultrasonic device for special paper , for instance KFC cold drink cup , top-grade ice cream cup, etc.
