Drink Straw Making Machine

Model Monochromatic Straw Machine
JDSM-M
Dichromatic Straw Machine
JDSM-D
Tricolor Straw Machine
JDSM-T
Four color Straw Machine
JDSM-F
Extruder Screw dia. 52 52 52 52
Main Screw L/D 25:1 25:1 25:1 25:1
Motor 7.5KW 7.5KW¡À0.75KW
¡Á1
7.5KW¡À0.75KW
¡Á2
7.5KW¡À0.75KW
¡Á3
Take up and Cutting Unit Transducer 0.75KW¡Á2 0.75KW¡Á2 0.75KW¡Á2 0.75KW¡Á2
Caspability Extruding output 25-35kg 25-35kg 25-35kg 25-35kg
Product length ¡Ý5mm ¡Ý5mm ¡Ý5mm ¡Ý5mm
Product dia. 1.8mm-8mm
1.8mm-13mm
1.8mm-8mm
1.8mm-13mm
1.8mm-8mm
1.8mm-13mm
1.8mm-8mm
1.8mm-13mm
weight(T) 0.9 1.0 1.2 1.3
Feature

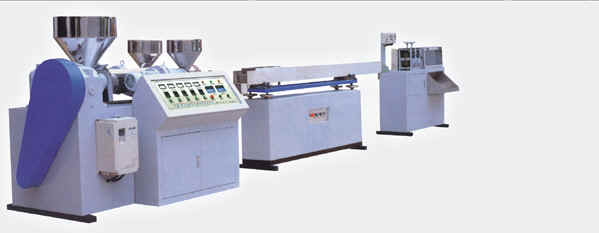

The Model JD is a tubing extrusion line. It is composed of extruder and die, Vacuum calibration and cooling unit, haul-off and rotary cutter or coiler, the entire machine's controls base with the control elements ergonomically adapted to permit easy operation.

The machine is ideal for laboratory education and small produ-ction, the system is also suitable for extruding straws, refluxes and most small diameter tubing and a wide range of industrial applications.


Drinking Straws£º30,000¡«40,000pcs/h
Cotton swab sticks
£º40,000pcs/h
Pen Refills
£º60,000pcs/h
Material
£ºPP¡¢PE
Cut-End
£º90¡ã/90¡ã¡¢90¡ã/45¡ã¡¢90¡ã/60¡¢45¡ã/45¡ã¡¢60¡ã\60¡ã
Operator: One operator is sufficient to run the line
Colors: Single, Two or Three, Spiral stripes, straight stripes.



¡¡
