Removing empty battlements machine (include can rinser)

Automatic and semi-automatic empty jar machine for removing battlements is manily used in auto-removing battlements of three-pieces and two-piece Al jar and glass bottles. It can elevate the empty jars which is piled on the trestle levels and levels to transporting line, and be transported to the slideway and auto-clearing machine by transporting line, so it is the absolutely necessarily ideal equipment for several juice factory.

production capacity: 150-200 jars(bottle)/min
the mode of pushing jar (bottle): automatic pushing jar, transporting
the mode of elevating battlements: automatic
Power: 2.4Kw

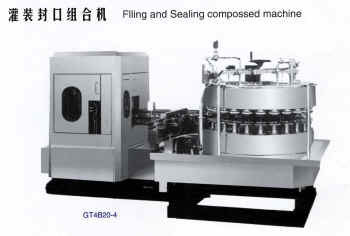

GT4B20-4 filling and sealing combination machine

This series of assembled machine are fit for filling and sealing of carbonated drink in the field of drink such as beer and juice. Thisa type machine adopt the advance technic on machinery electric and pneumatic. So it had great wonderful characters. For example, filling calmly, fast vacility and compact sealing. the vacility of producting can be controlled fredom. It is ideal machine for filling and sealing of Al jars.

Production capacity: 100-150 jars/min
suitable diameter of jars: 52.5-75mm
suitable high of jars: 65-160mm
power: 5.5kw
the size of dimension: 2700x1900x2000
weight: 4 T

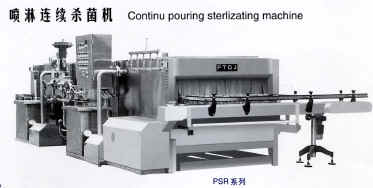

PSR-150 Continuous pouring sterilizating machine

This machine is on the basis of digesting and obsorbing foreign products. It adopt the sterilizating modes include hot water circulating pouring, warm water frozen, cold water frozen. the time and temperature of sterilization can be controlled freedom, so it can be applied on the pastearism of several foods such as vegetable, fruit cans and juice. It also can be used in cir-temperature of beer and juice containing air.

production capacity: 100-150 jars/minute
highest temperature of sterilization: <100 C
The temperature district of sterlization: 3-5
the length of outputing line: 100-550mm/min
the pressure of steam: 0.4 MPa
type size of dimension: 900x1920x1950mm
