ZG series Aerated Beverage Filler-Capper for glass bottle

ZG12-6 ZG16-6 ZG20-6 ZG32-8
Production capacity 3000 b/h 4000 b/h 5000 b/h 8000 b/h
bottle height 180-300 mm 180-300 mm 180-300 mm 180-300 mm
bottle diameter Ø50-90 mm Ø50-90 mm Ø50-90 mm Ø50-90 mm
Beverage temperature < 2-4 C < 2-4 C < 2-4 C < 2-4 C
Motor power 1.7 kw 2.4 kw 2.4 kw 3.2 kw
Dimensions 150x110x200 cm 160x120x200 cm 166x140x200 cm 170x170x200 cm
Weight 2.80 T 3.00 T 3.50 T 4.00 T
Feature:
  suitable for filling and capping procedures in mass production of glass bottles filled with liquids such as carbonated beverage. The production speed can be controlled with the frequency converter.

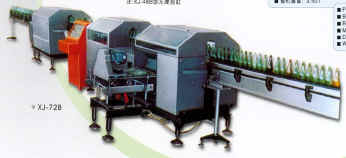

XJ series Automatic Bottle Rinser Assembly for glass bottle


XJ-48B (without immersing) XJ-72B (with immersing)
Production capacity 4300 b/h 4300 b/h
bottle height 180-290 mm 180-290 mm
bottle diameter Ø56-80 mm Ø56-80 mm
Motor power 3.50 kw 7.00 kw
Dimensions 300x200x150 cm 520x200x150 cm
Weight 2.50 T 3.50 T





Feature:
suitable for bottle-rinsing procedures in beverage production such as immersing recycled glass bottles in soda solution, brushing the inner and outer of the bottle, and washing with high pressure.
