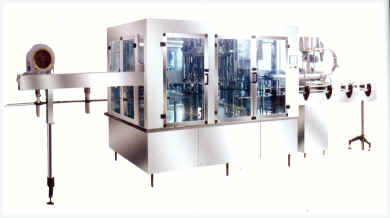

CGX series Fully-automatic Rinser-Filler-Capper Monoblock for water



Model

CGX16-16-6 CGX24-24-8 CGX32-32-10 CGX40-40-10
Production capacity(b/h) 6000 8000-10000 12000-14000 15000-17000
Filling precision <5mm (liquid level)
Polyester Bottle standard bottle diameter: 50-100mm, bottle height: 150-320mm
suitable cap shape plastic screw cap
Gas source pressure (MPa) 0.6
gas consumption (m3/min) 0.2 0.4 0.5 0.55
Total power (KW) 4.23 6.57 8.07 9.60
Total weight (kg) 3000 4200 5000 5500
Dimension (LxWxH) (cm) 245x170x250 320x220x250 360x280x250 380x300x250
Feature
   The equipment is used in production of non-soda drink of fruit juice, minerals and pure water packed in polyester bottles. Washing, Filling and Capping are integrated in one machine
   1. The suspending bottle-neck clamping design is used in machine, the filling valves rise and down to fill and let the bottle moving stable. By changing a few parts, can suit for different bottle type.
   2. the new generation of stainless steel spring is used in the washing clamps, and the clamps have no contact with the area above the bottle screw. There are many small holes in the washing nozzles, that can wash the whole area inside the bottle. The machine had two outside and inside two stages of washing, guarantee a high clean of the bottle.
   3. The advance micro-negative pressure filling technology used in this machine. The filling is quick, steady and accurate. The beverage feed back system is well designed, the gas can be feed back separately, has no contact with beverage, reduce the second time pollution and oxidation.
   4. Magnetic torque is used for screw capping, the power of screw capping can be adjusted step-less, it can use constant power to screw capping the plastic caps.
   5. The human-machine interface is the touch-screen. The most advanced PLC control and frequency changing technologies are used in this machine.
   6. All parts that direct contact with the air made in SUS304 stainless steel. The critical electronic components are from Mitsubishi, Omrom and etc.

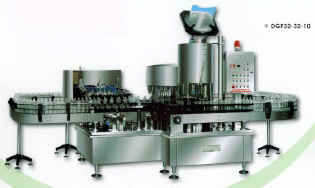

DGP series fully-automatic Rinser Filler and Capper Monoblock
¡¡

¡¡ DGP12-12-4 DGP16-16-6 DGP24-24-8 DGP32-32-10
Production capacity 3000 b/h 5000 b/h 9000 b/h 12000 b/h
bottle height 140-300 mm 140-300 mm 140-300 mm 140-300 mm
bottle diameter Ø50-90 mm Ø50-90 mm Ø50-90 mm Ø50-90 mm
Motor power 1.7 kw 2.4 kw 2.4 kw 3.2 kw
Dimensions 188x156x250 cm 206x168x250 cm 223x175x260 cm 288x233x270 cm
Weight 2.80 T 4.00 T 4.40 T 5.00 T

Feature:
   Suitable for rinsing, filling and capping procedures in mass    production of polyester bottles filled with liquid such as drinking water. The production speed can be controlled with the frequency converter.
